Breakers that keep tripping, won't reset, feel warm, or trip only when a specific appliance runs. Federal Pacific and Zinsco assessments. AFCI and GFCI retrofit. New dedicated circuits for EV, hot tub, or kitchen. Diagnosed at the source, not swapped and hoped.
Circuit breakers are simple devices doing a critical job: shut off power the instant something goes wrong. When they trip too often, won't reset, or feel warm, something is wrong upstream, downstream, or with the breaker itself. Diagnosing which is which is 80% of the repair.
Hunterdon County has a specific breaker landscape. Mid-century subdivisions in Raritan Township, Readington, and Clinton Township from the 1960s through the 1980s were built with 100-amp panels that are now maxed out by modern loads. Kitchen appliances, central AC, hot tubs, and EV chargers routinely trip aging breakers that were never designed for that current draw.
A significant chunk of those mid-century panels are Federal Pacific Stab-Lok, a brand that a 2002 New Jersey court ruling found had knowingly falsified UL testing, and that independent testing shows fails to trip in up to 70% of dangerous overcurrent conditions. That's not a repair problem, that's a replacement problem. We'll be honest with you if we find one.
Older homes in downtown Flemington, the Town of Clinton, and Lambertville have their own breaker patterns: original wiring with loose connections at the breaker lug, missing AFCI protection on bedroom circuits (code-mandated since 2008), and shared neutrals that make troubleshooting harder.
Breaker symptoms fall into 8 distinct categories, and each points to different underlying causes. Pick the closest match on the right and we'll show you the most likely cause, whether it's urgent, and whether it's typically a breaker-level repair or a bigger panel conversation.
This is a starting point, not a diagnosis. For anything urgent, especially a warm breaker or one that won't reset, call (908) 751-4227.
The full range of breaker work that comes into our Flemington shop, from simple replacements to code-driven retrofits.
The most common call. Trace whether the trip is caused by circuit overload, a short somewhere downstream, a ground fault, or a failing breaker itself. Different fixes for each.
Same-day fixBreaker flips right back to trip when you try to reset it. Almost always means there's an active fault downstream. We isolate the fault before replacing anything.
Priority same-dayLoose lug connection, undersized wire for the load, or a breaker at end of life. Any warmth at a breaker is a real fire risk. Fix immediately, do not wait.
Address nowStraight one-for-one replacement of a failed breaker with an OEM-matched Square D, Eaton, or Siemens replacement. Simple job when the panel is compatible.
StraightforwardNJ code has required AFCI protection on bedroom circuits since 2008 and expanded to more circuits with each NEC update. Retrofit existing panels to current code.
Code complianceWhole-circuit GFCI protection at the panel instead of at every outlet. Cleaner than daisy-chained outlet GFCIs. Common on outdoor circuits, older kitchens and baths.
Cleaner protectionNew breaker + new wire run for a new appliance: EV charger, hot tub, workshop tools, kitchen island, mini-split. Each dedicated circuit gets its own breaker at the correct amperage.
1 to 2 daysBuzzing or humming coming from the panel means arcing at a connection. Serious. We isolate the source and correct it, whether it's a lug, a breaker, or a bus bar issue.
Fix immediatelyFederal Pacific Stab-Lok or Zinsco panels can't be reliably repaired. We can assess, document, and provide the honest recommendation. Almost always leads to a panel upgrade.
Panel replacementThe single biggest misconception about circuit breakers is that a tripped breaker is a broken breaker. It isn't. A breaker that trips is doing exactly what it's supposed to do: shutting off power in response to a real electrical problem. The question is what triggered the trip.
We diagnose in three categories, and the fix depends entirely on which category we're in.
Breaker tripped in response to overload, short, or ground fault downstream. The breaker is fine. The circuit or an appliance on it is the problem. Fix the circuit, and the breaker resets and holds.
Breaker is worn out from years of tripping and resetting, or from long-term thermal cycling at the lug. Trips easily under loads that used to be fine. One-for-one replacement with a new OEM breaker fixes it.
Breaker never worked reliably to begin with. This is the Federal Pacific and Zinsco reality. Independent testing shows failure-to-trip rates far higher than any other manufacturer. Replacing the breaker doesn't fix the underlying design flaw.
If you're in a mid-century Raritan Township, Readington, or Clinton Township subdivision from the 1960s through the early 1980s, there's a real chance your panel is a Federal Pacific Stab-Lok or Zinsco. Both were widely installed during the housing boom of that era, and both have well-documented fundamental safety problems.
These aren't repair-and-move-on situations. The problem is inside the breaker itself, and swapping individual breakers doesn't fix the underlying design flaw. We can assess honestly and give you the real picture. When we find one, the answer is a panel upgrade, not a breaker swap.
Not every breaker brand is equal, and some are known problems. Here's the honest breakdown of what shows up in Hunterdon County panels.
Owned by Schneider Electric. QO and Homeline series dominate residential in Hunterdon County. QO is premium tier, Homeline is value tier. Both reliable, wide parts availability, and installer-friendly.
Eaton absorbed Cutler-Hammer years ago and still sells under both names. BR and CH series are the residential lineup. Excellent build quality, wide compatibility with existing panels.
QP series residential breakers. Slightly less common than Square D or Eaton in HC but perfectly reliable. Good parts availability. Common in newer construction from certain builders.
GE sold its residential breaker business to ABB. THQL series is the residential lineup. Reliable, common in older HC panels, still supported for parts. No known safety issues.
Stab-Lok breakers have a documented 60-80% failure rate in independent testing. No factory support. Aftermarket replacements have the same design flaws. Panel replacement is the answer.
Less common than FPE but similar story. Known failure modes including breakers that stay energized when switched off. If you have Zinsco or Sylvania GTE-Sylvania breakers, plan for replacement.
Modern breakers do more than just trip on overload. AFCI and GFCI breakers detect specific fault types that traditional breakers miss. Both are code-mandated in NJ for specific circuit locations.
Detects the electrical signature of arcing (loose connections creating sparks) and trips before it becomes a fire. Standard 20A breakers can't detect arcs, they only see overload and short circuits.
Required by NJ code (via NEC adoption) on bedroom circuits since 2008, and progressively expanded to more circuits in subsequent code cycles. Nuisance tripping is real on older wiring, but the safety benefit is significant.
Detects current leaking to ground (like when a hair dryer falls in the sink) and shuts off in milliseconds. Prevents shock and electrocution. Can be at the outlet or at the breaker.
Whole-circuit GFCI at the breaker is cleaner than daisy-chained GFCI outlets, especially for outdoor circuits, bathroom circuits, and older wiring where downstream outlets don't have GFCI protection.
New appliances need dedicated circuits. Not a new outlet on an existing circuit, an actual new breaker at the panel with wire pulled to a new dedicated receptacle. The amperage of the breaker has to match the appliance draw, and the wire gauge has to match the amperage. Undersize any of the three and you've built a fire hazard.
Most panels have some open slots for adding circuits. Older panels or ones already maxed out may need a subpanel or a full panel replacement first.
The most common dedicated circuit requests we get in Hunterdon County are on the right.
Three recent breaker jobs. Different problems, different fixes, different scope.

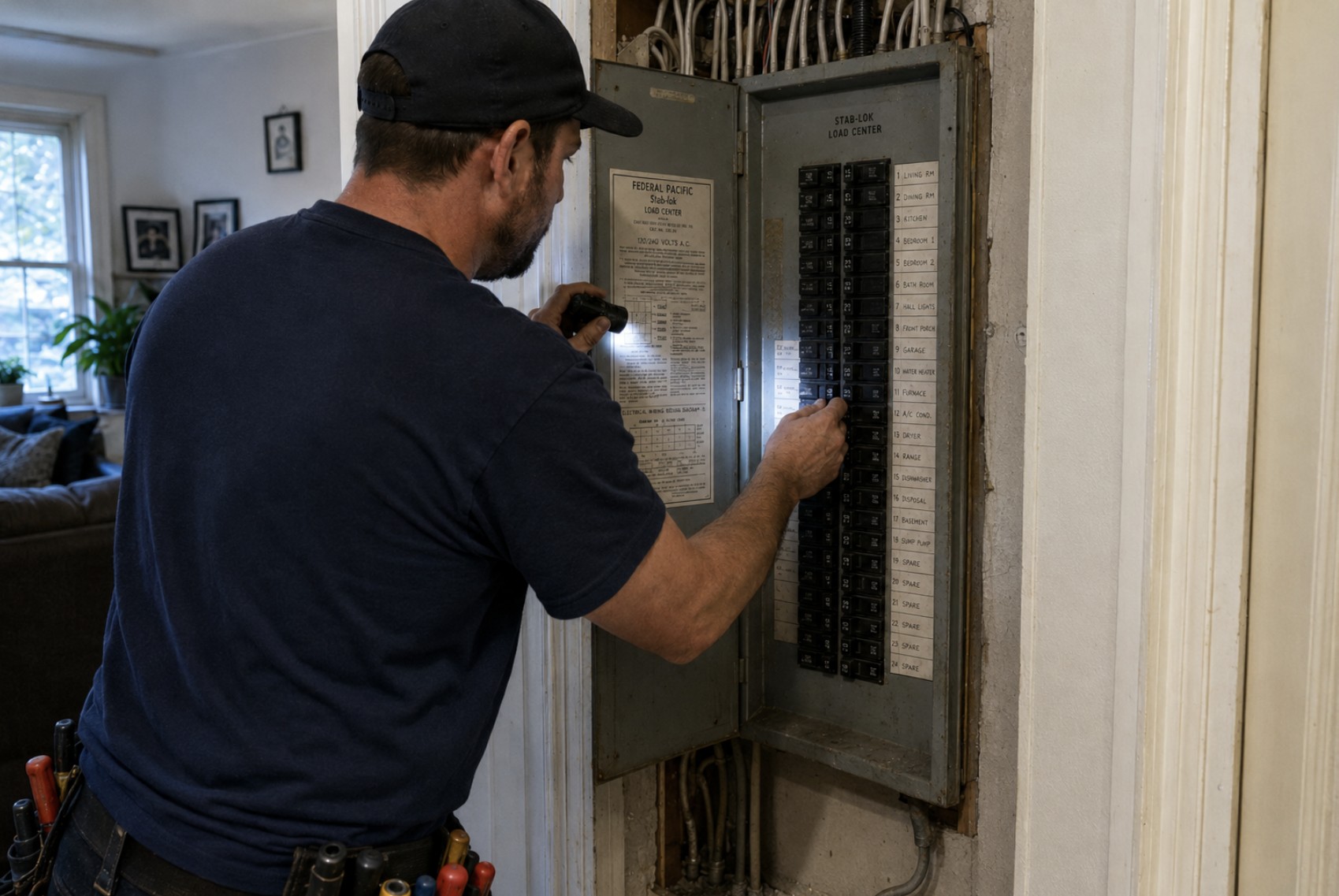

FPE Panel Found
Homeowner called about a breaker that kept tripping when the microwave and toaster ran together. Panel turned out to be an original Federal Pacific Stab-Lok. Explained the honest situation, provided documentation of the FPE hazard research, and quoted a panel upgrade instead of a breaker swap. Homeowner appreciated the transparency. Panel replacement scheduled the next week.
50A EV Circuit
2015 modern home off Route 523 with a Square D QO panel and open slots. Homeowner bought a Tesla Wall Connector. Added a 50A dedicated circuit with 6-gauge copper wire from panel to garage wall, tied to a new 50A QO breaker. Same-day install. Township permit filed with Readington, inspection scheduled.

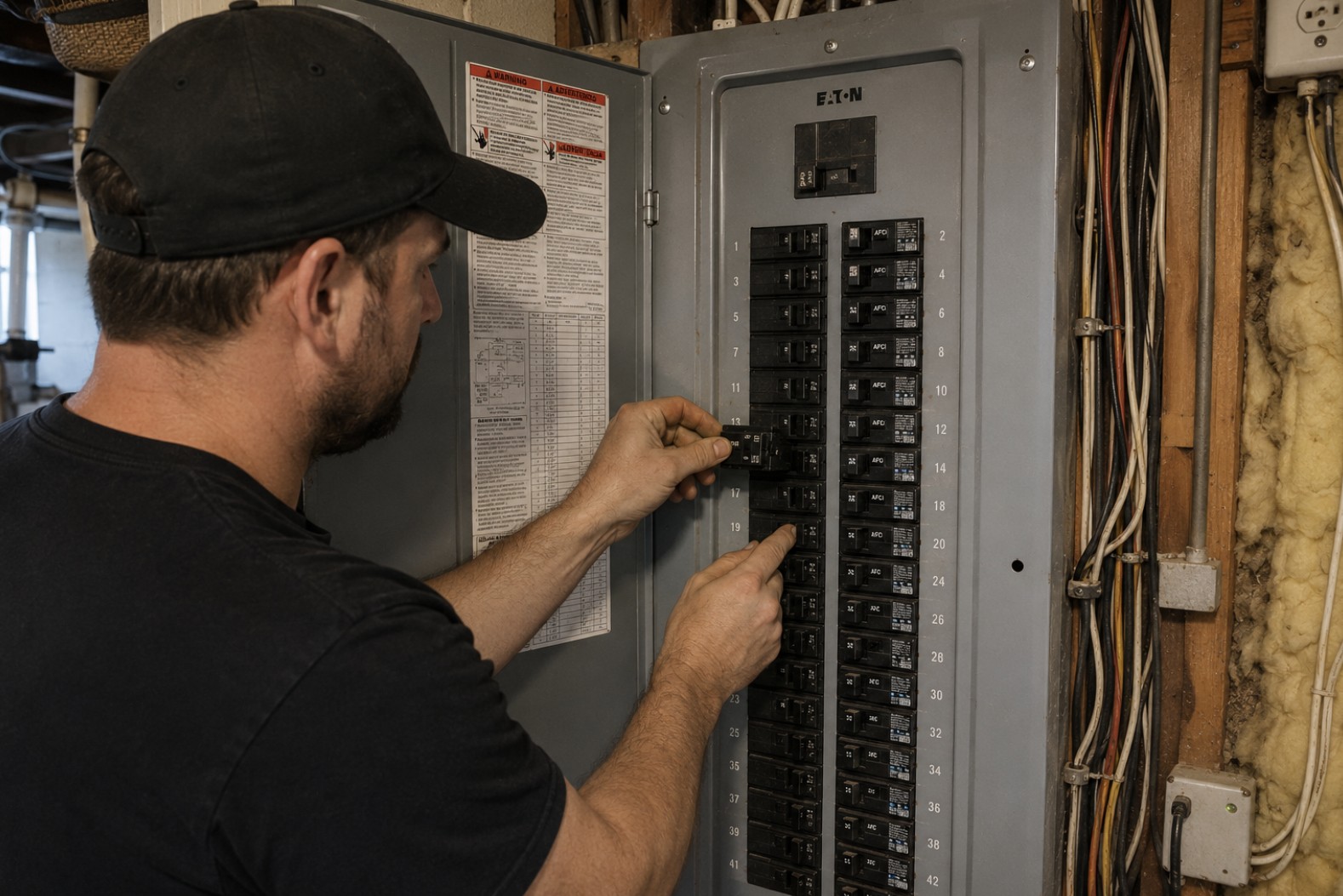

AFCI Retrofit
Home in Clinton going through inspection for sale. Buyer's inspector flagged missing AFCI protection on bedroom circuits. Eaton BR panel with open slots. Swapped four standard 15A breakers for AFCI equivalents on the bedroom circuits. One-hour job, sale closed without further inspection issues.
Breaker work covers a wide range of scope. A simple one-for-one breaker replacement on a standard Square D or Eaton panel with easy access is one of the more affordable electrical repairs. Adding a new dedicated circuit with a wire run is a bigger job. AFCI retrofits fall somewhere in between depending on how many circuits need conversion.
Every quote is written and itemized on site after we've identified what's actually going on. Diagnostic fee disclosed before we head out. What you see is what you pay.
If we identify a Federal Pacific or Zinsco panel that needs replacement, that quote is separate and we walk you through it before proceeding. No pressure.
Four possible causes: 1) circuit overload (too many high-draw devices at once), 2) short circuit somewhere in the wiring or an appliance, 3) ground fault (current leaking to ground), 4) a failing or defective breaker. The right response depends on which one. We diagnose the actual cause instead of just swapping the breaker and hoping the problem stops.
Usually yes, once. Push firmly to OFF, then back to ON. If it holds, the trip was probably a one-time event. If it trips right back, don't keep resetting it, that's a sign of an active fault and repeated resets can damage the breaker or worsen the underlying problem. Call us instead.
A quality breaker like Square D QO or Eaton CH from a name-brand manufacturer typically lasts 30-40 years in normal residential use. Breakers that trip frequently wear out faster because each trip creates thermal cycling that stresses the internal components. If a specific breaker is tripping often, replacement is often the right call even before it fully fails.
Look at the panel cover. Federal Pacific Stab-Lok panels usually have "FPE," "Federal Pacific Electric," or "Stab-Lok" printed on the panel door or the breaker handles. Colors often include red-tipped breaker handles on the trip toggle. If you're not sure, we can identify it on a service call. Do not open the panel yourself, live parts are exposed.
Aftermarket replacement breakers exist for FPE panels, but independent research and testing have found they have the same design problems as the originals. The underlying panel bus bar and connection issues remain regardless of which breakers are installed. The honest recommendation is a full panel replacement, not a breaker swap.
AFCI breakers can be sensitive on older wiring, older motors, and certain electronic devices. Common nuisance-trip causes: shared neutrals across circuits, older motors on the same circuit, some vacuum cleaners and hair dryers, and LED dimmers. We diagnose the specific circuit and either fix the underlying issue or select a specific AFCI model with better tolerance for the problematic device.
Depends on how full and what you're adding. Options: use a tandem breaker if the panel supports them (fits two breakers in one slot), add a subpanel to expand capacity, or upgrade the main panel entirely. For adding a big load like an EV charger to an older panel, a load calculation determines whether the service can even handle it.
Straight one-for-one breaker replacement generally does not. Adding new circuits, replacing a panel, or doing significant electrical work inside the panel does require an electrical permit under the NJ Uniform Construction Code (UCC, N.J.A.C. 5:23). We handle permit filing when it applies.
A real person picks up. Root-cause diagnosis, written quote first, and honest recommendations. No mystery breaker swaps.
